❇️ Overview Of The Application

This section simply serves as an introduction to the application, there are no tasks to be carried out.

The application is called 'NanoMon'. NanoMon is a lightweight network and HTTP monitoring system, designed to be self hosted any container based system e.g. Kubernetes or various cloud services, or run locally.

We have no particular interest in the features of Nanomon or actually using it! It has been selected as representing a good example application to deploy, given it has multiple components, and is fairly indicative of many of the applications & systems you might find yourself running in Kubernetes.

Project link: Nanomon - GitHub Repo & Project

The application consists of several lightweight containerized microservices and single page application, it is written in Go and React/TypeScript.

• A frontend service serving static content of the frontend SPA + simple configuration endpoint.
• A backend data API service for the frontend to consume using REST.
• A backend worker component called a runner.
• A PostgreSQL database for persisting data & state.

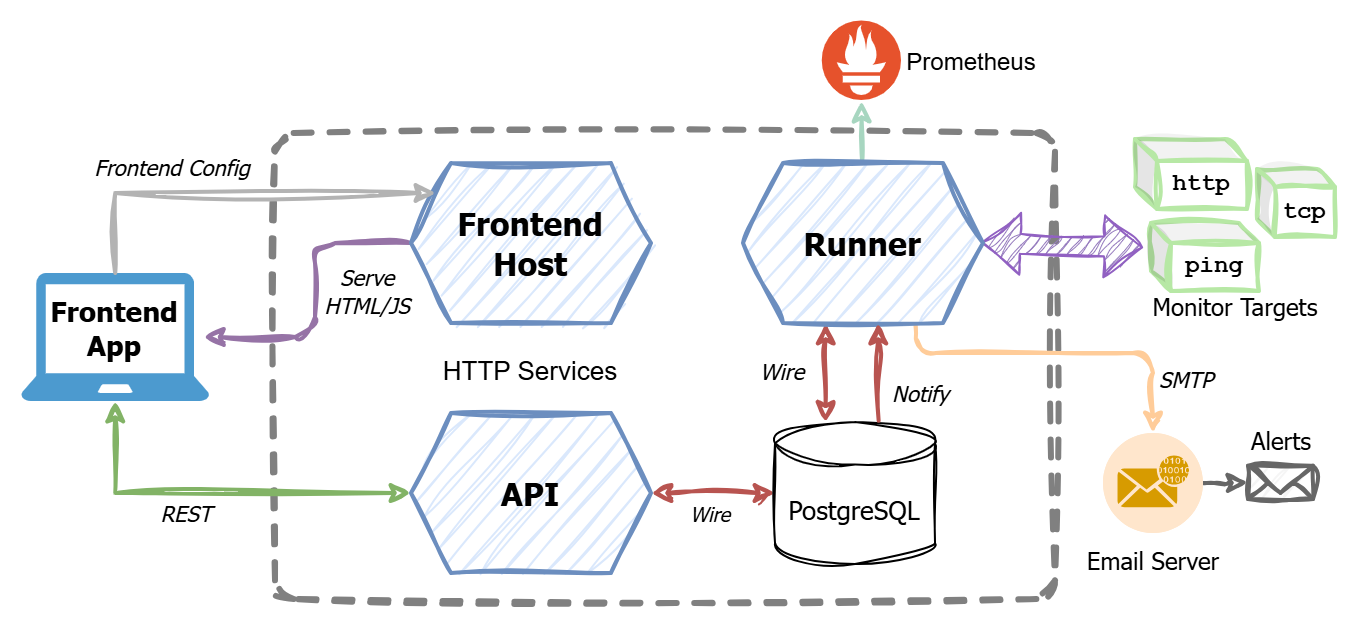

The design adheres to a now ubiquitous pattern for running single page apps:

For this workshop the system will be deployed with the following criteria:

• Both the API and frontend need to be exposed to the public internet. Both use HTTP as a protocol.
• The PostgreSQL database runs inside the cluster, but not exposed externally
  • Many arguments rage on whether it is good practice to run stateful workloads like a database in Kubernetes. For the purposes of this workshop we shall, in the interests of both speed and to demonstrate some key concepts. For your production workloads I advise you do some reading and research first
• The runner similarly will be configured with no incoming connectivity.
• Authentication and API security will disabled and the app will run in "no-auth mode"
